MultiInspectorFree
Multitrack Real-Time Spectrum Analyzer



Put Your Eyes On The Mix

Test features of MultiInspector with MultiInspectorFree.

I developed MultiInspectorFree for long studio-sessions to assist your ears. MultiInspectorFree visualizes up to 4 different audio signals in real time in one window (for up to 16 audio signals see MultiInspector) and helps you to detect overlapping frequencies in your mix.

MultiInspectorFree is a 31 band spectral analyzer with multitrack functionality. It incorporates a standard third octave frequency analyzer. Center frequencies of the bands are based on the ISO 266:1997 standard (20 Hz to 20 kHz). Pink noise will appear flat in the frequency spectrum. MultiInspectorFree supports up to 4 instances at a sample rate of 44.1 kHz.

MultiInspector And MultiInspectorFree At A Glance

MultiInspectorFree
Max Number of Instances
16
4
31 Band Mode
X
X
Sample Rates
32 kHz - 192 kHz
44.1 kHz
FFT Mode
X
HiResolution 31 Band Mode
X
Zoomable Frequency Display
X
Solo/Mute of Signals
X
Memory Slots
X
Selection of Signal Color
X
Naming of Signals
X

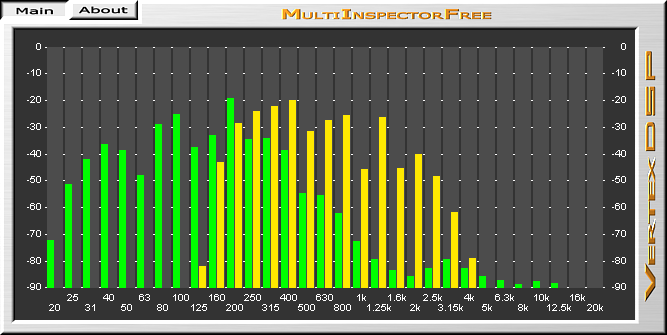

Screenshots

Width and the Color of the level bars are adjusted according to the current number of instances. Click for full size.




System Requirements

Windows:

  • Windows XP/Vista/7/8.
  • VST 2.4 compatible host software.

Mac OS X:

  • Mac OS X 10.4/10.5/10.6/10.7/10.8.
  • VST 2.4 or AU compatible host software. Universal Binary, PowerPC and Intel supported.


Download

History

Version 1.2.0 - 25-Feb-2009
Enhancements
• Compatibility with the fxpansion VST-RTAS adapter.
• Improved window handling (AU version).
Bug Fixes
• The installer now removes all temporary files used during installation (Mac only).
• Minor bug fixes.

Version 1.1.3 - 08-Oct-2007
Bug Fixes
• Keyboard focus of the host is now retained after clicking inside the editor window (Mac only).
• Compatibility issues with systems running Mac OS X 10.3.

Version 1.1.2 - 31-May-2007
Bug Fixes
• Flickering display of the level bars under certain circumstances.

Version 1.1.1 - 23-May-2007
Bug Fixes
• Incorrect assignments of levels in low frequency bands.

Version 1.1.0 - 07-May-2007
Enhancements
• GUI update frequency increased for smooth attack/release behavior of the level bars.
• Improved accuracy of the level bars.
Bug Fixes
• The levels of the mono version had an offset of -6 dB.
• Memory leak fixed (Windows only).

Version 1.0.0 - 03-Apr-2007
• Initial Release.

You can find the latest release notes here.
